img87 Mechanické vlny: Motor, 12 V DC

Motor, 12 V DC

Katalogové číslo: 1001041
Dostupnost: Termín dodání ZDE
Hmotnost: 1 Kg

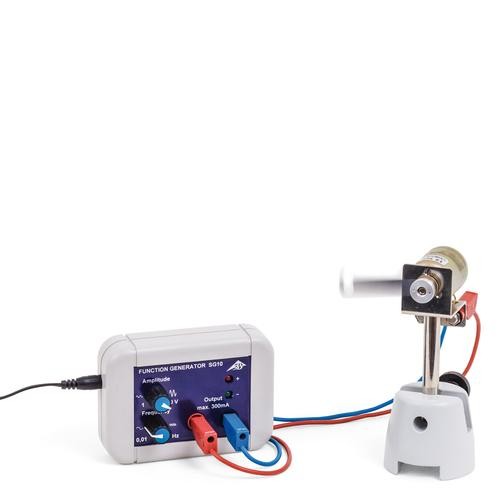

Popis Advantages: · Rotor, coreless · High starting torque · Low moment of inertia Compact experiment motor – can also be used as a tachogenerator, oscillation generator or for the excitation of rove waves. The motor has a coreless rotor and thus has a high starting torque at a lower moment of inertia. It is characterised by a very short starting time, smooth running and low running noise. On its axis, the motor has a threaded bush with a screw-on retaining pulley. Thus, plates and levers too can be fixed on to the axis. Nominal voltage/current: 12 V/260 mA DC Run-up voltage/current: 0.5 V/45 mA DC Power consumption: 3.6 W Nominal speed 3900 rpm Nominal rated torque: 0.5 Ncm Direction of rotation: Reversible Dimensions in mm: approx. 130x55 mm2 Weight: approx. 200 g 1001041 Motor, 12 V DC 1001038 Generátor sinusových vln
