img8 Měření času: Fotobuňka


Katalogové číslo: 1000563
Dostupnost: Termín dodání ZDE
Hmotnost: 1 Kg
Cena s DPH4 078 CZK

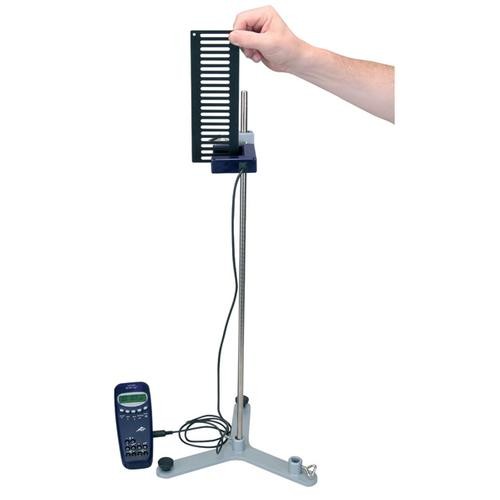

Popis Infrared photo gate for triggering the 3B NETlog™ unit (U11300) or a digital counter (U8533341). For time measurements in experiments on free fall, motion on a track or pendulum oscillations and for counting pulses. It can be operated in internal mode using the built-in infra-red light source or in external mode with the aid of a laser pointer, which needs to be obtained separately. It then acts as a wide-range light barrier, allowing it to be used at sporting events, for example. The gate includes an operational indicator light, stand rod with screw thread, M6 bolt for attachment to a roller track (U35001) and connector lead with 8 pin miniDIN plugs. Barrier spacing: 82 mm Rise time: 60 ns Spatial resolution: < 1 mm Time resolution: 0.1 ms Nutné: 100563 Foto brána
